Stay Point - Box of 10

*This product can be used in conjunction with the 10 year end-assembly guarantee. Please view the specifications drawings here for more information or contact us today.

SPECIFICATIONS

• Material - 3mm Galvanized Steel Plate
• Size - 2” (56mm) for Extra Light Wall Pipe, 1 1/2” (43mm) for Med Wall Pipe, Heavier Wall can be Used
• Quantity - 10 / pack
• Weight - 130g
• Strainer Post Hole - 1/2” or 12mm

STAYPOINT™

• Use a 1/2 inch flat gal washer for timbers post only
• 2" extra pipe or 1 1/2" medium well
• 1/2" Hole

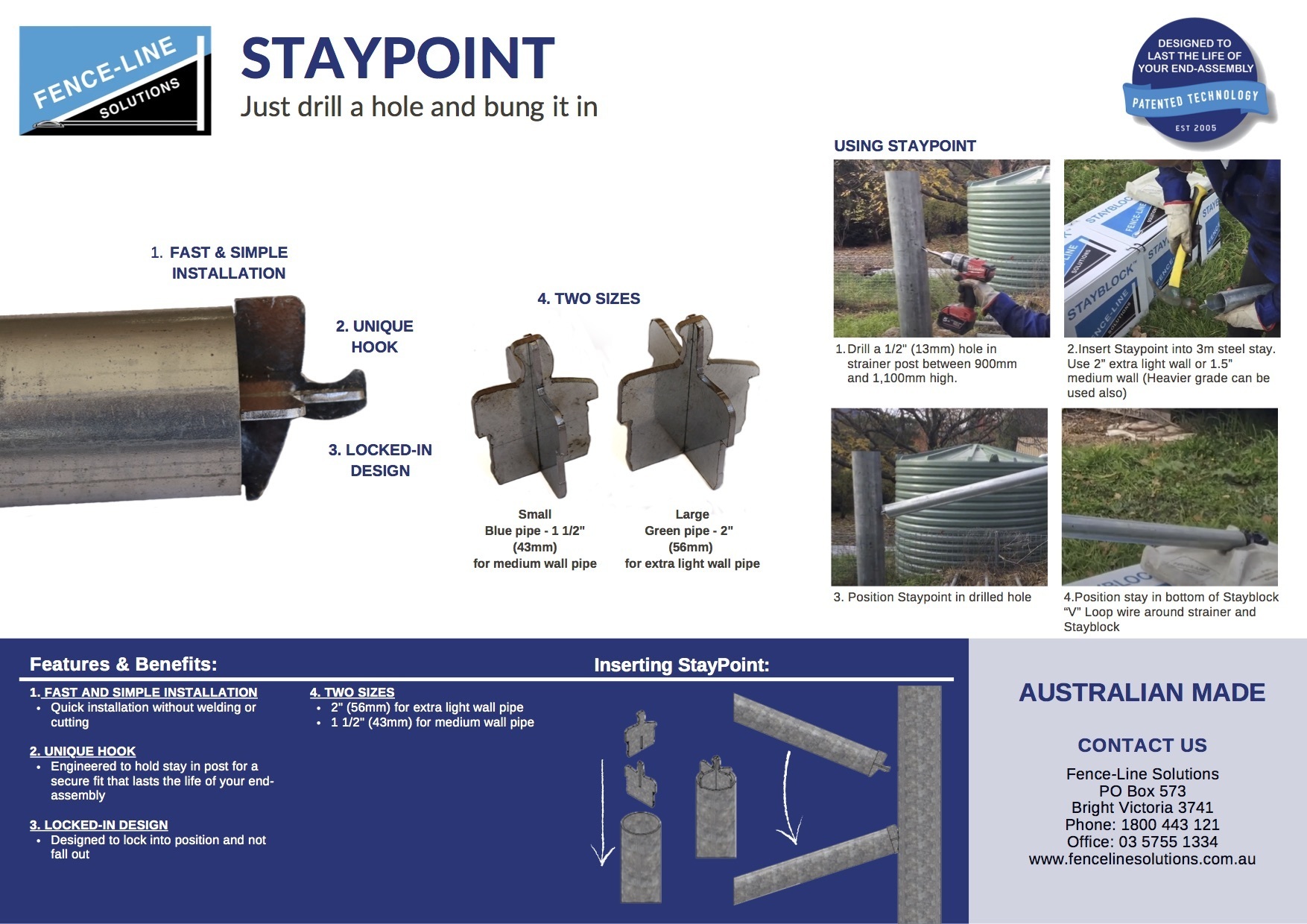

USING STAYPOINT

• Drill a 13mm hole in strainer post with a 70˚ angle
• Insert Staypoint into 3m steel stay. Use 2” extra light wall or 1.5” medium wall (Heavier grade can be used also)
• Position Staypoint in drilled hole
• Position stay in bottom of Stayblock “V” Loop wire around strainer and Stayblock
